CDM 5MW Turnkey Modular AI Factory
Campus-Scale Modular AI Infrastructure with Resilient 4-to-Make-3 Power Architecture

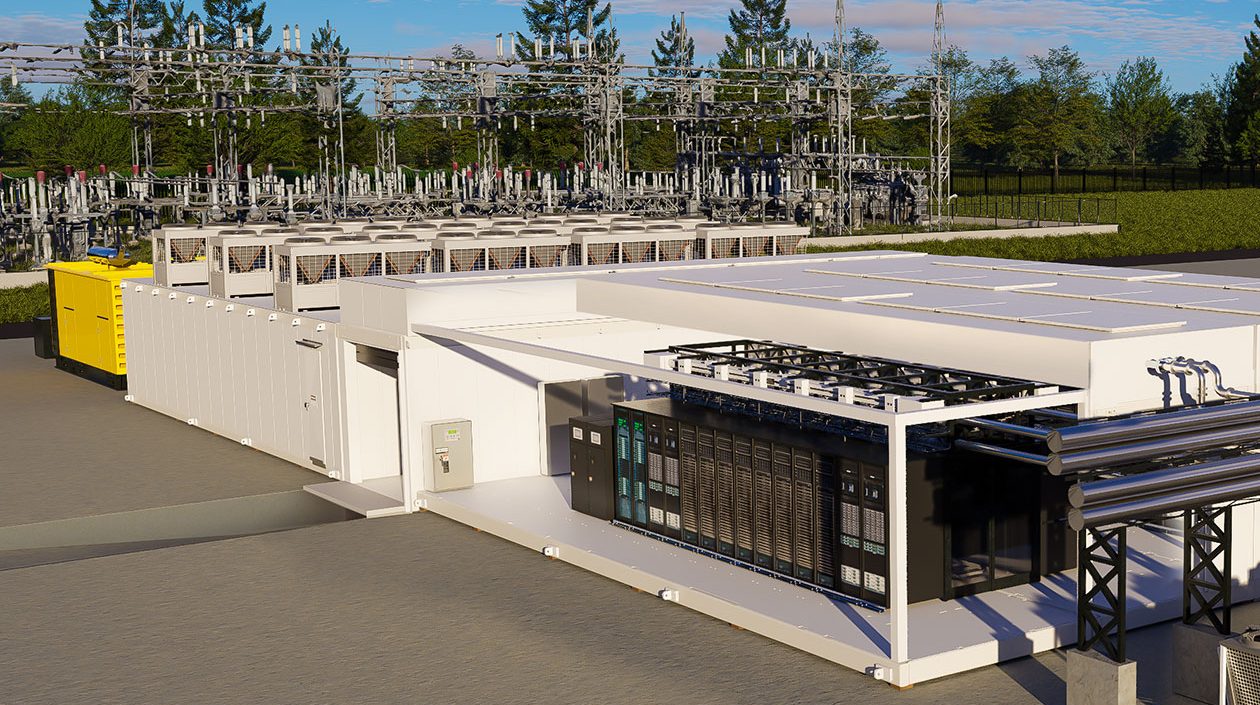

The CDM 5MW Turnkey Modular AI Factory data center solution is the pinnacle of modular hyperscale deployment. Four 1.5MW IT modules physically connect to form a seamless ~2,530 sq. ft. data hall, powered by a hyper-resilient 4-to-make-3 electrical architecture providing 8MW of installed UPS capacity. Designed for high-density training and campus replication, the repeatable architecture allows customers to deploy right-sized capacity today and expand toward 10MW, 15MW, 50MW, and larger AI campuses as compute requirements grow.
Key Features & Highlights
Plug-and-Play Infrastructure: Seamless ~2,530 sq. ft. contiguous data hall pre-engineered with high-density power and cooling infrastructure to accommodate up to 64 server racks for rapid deployment.
Hyper-Resilient Power Topology: Four 2MW Power Modules in an 8MW 4-to-make-3 configuration with dynamic load stabilization and 5-minute EOL battery runtime for concurrently maintainable, uninterrupted operations.
High-Density Liquid/Air Hybrid Cooling: Optimized baseline for advanced GPUs (e.g., NVIDIA NVL72) with dedicated secondary DTC liquid loops and UPS-backed primary infrastructure.
Standardized Design: Standardized core built in the USA to ISO 9001 and UL 2755 compliance standards.
Engineered and factory-built in the USA, the CDM 5MW Turnkey Modular AI Factory Data Center Solution provides a vendor-neutral, hyperscale-ready architecture built for massive AI training clusters and multi-megawatt campus replication. Pre-tested to ISO 9001 and UL 2755 standards and delivered through Level 5 commissioning, it accelerates speed-to-market while giving operators complete control over their hardware environment.
| Category | Parameter / Specification |
|---|---|
| Nominal IT Load | 5MW scalable up to 6MW |
| Server Rack Capacity | Up to 64 racks (supports current rack platforms from leading IT vendors) |
| Number of Modules | 4 IT modules + 4 power modules (8 modules total) |
|
Dimensions (L x W x H) |
IT modules: 55' (L) x 46' (W) | Power modules: 55' (L) x 46' (W) | Height: 12.25' (H w/o cooling module) |
| Max Module Weight | IT Modules: ~240,000 lbs (without IT) | Power Modules: ~240,000 lbs |
| Power Architecture | 4x 2MW Power Modules (4-to-make-3 topology, 8MW installed UPS capacity); dynamic load stabilization |
| Input / Rack Voltages | 480V input; 480V/277V or 415V to rack |
| Cooling Technology | Hybrid (Chilled Water AHU + Liquid); dedicated secondary TCS loops; separate isolation valves for concurrent maintenance |
| Structural & Environmental Ratings | NEMA 3R-rated exterior, R-18 insulated walls, Seismic Design Categories C or D, rated for 130+ mph winds and 50+ psf snow loads |
| Monitoring, Fire & Safety | Centralized ECS telemetry (BACnet/Modbus), EPO capabilities, VESDA smoke detection, NOVEC 1230 / pre-action fire suppression, dual-zone leak detection sensors |
The CDM Lifecycle Approach
1. Plan & Design:
High-density capacity
planning and
modularization strategy.
2. Engineer & Build:
U.S. factory fabrication, full
integration, and rigorous
testing to UL 2755 and ISO
9001 standards.
3. Deploy & Commission:
Heavy rigging, mechanical/
electrical integration, and
Level 5 Commissioning.
4. Operate & Evolve:
Lifecycle support,
maintenance, and
hardware adaptability
Ideal Deployment Use Cases
Hyperscale Campuses: The standardized building block for rapidly replicating footprints into 10MW, 15MW, or 50MW+ AI data centers.
Foundation Model Training: Ensures uninterrupted uptime and massive contiguous space for large-scale LLM training epochs.
Wholesale AI Colocation: Delivers extreme-density, multi-tenant environments at a fraction of traditional construction timelines.
Accelerate your compute roadmap without the delays, capital lock-in, or long timelines of traditional data center build cycles. From initial design to turnkey commissioning, CDM is the only partner you need to deliver your next AI data center—where you need it, and when you need it.
Schedule your free consultation with the Compu Dynamics Modular solutions team.
